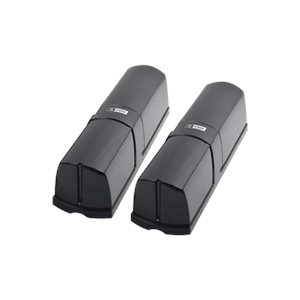

SFIRE SF150HO Industrial Photoelectric Quad Beam Detector 150m

SFIRE SF150HO Industrial Photoelectric Quad Beam Detector 150m

All the Photoelectric detector series of S FIRE® come with an exclusive

design in the casing that avoids false alarms by rain, snow, and reflexes

produced by the sun. The channels of the photoelectric beam are digital

which allows a perfect synchronization between the transmitter and receiver,

avoiding false alarms by interference or similar equipment, an adjustment

that guarantees the correct operating, through LED indicator.

The SFH models bring a greater level of security, they offer a 4 ray infrared protection which must be obstructed simultaneously to generate an alarm.

• Interior distance (without lid): 1476 ft (450m).
• Exterior distance:  492 ft (150m).
• Response time: 12-250m seconds.
• Alarm output: Relay type C.
• Power supply: 12- 24 Vcd 11-18 Vca.
• Consumption: 100 MA.
• Tamper: usually closed.
• Operating temperature: -13 ~ 131°F (-25 ~ 55 °C).
• Humidity: 95%.
• Protection grade: IP65.
• Dimensions: 4.33 x 4.13 x 13.58" (110 x 105 x 345 mm).
• Mounting: post or wall.
• Weight: 2.20 lb (1.0 kg)
