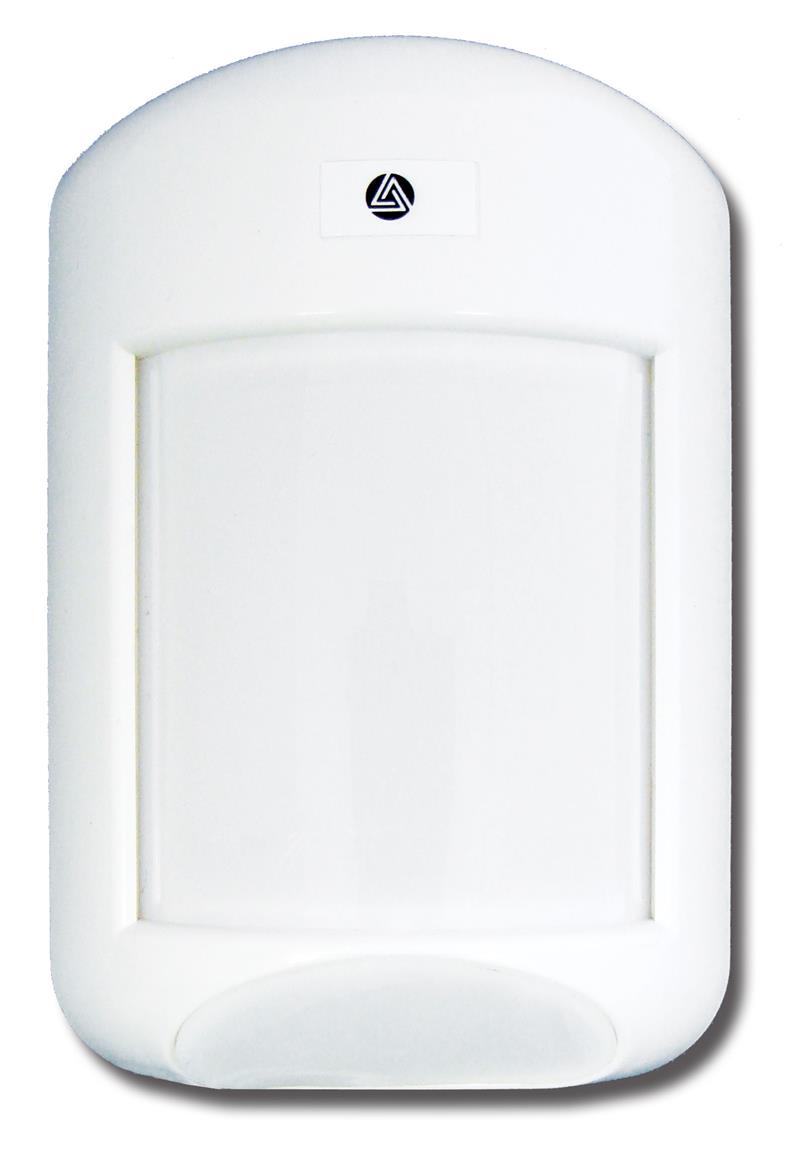

Aleph AL-40H Wireless Passive Infrared Detector (PIR)
|
|
MSRP: $61.56
Price: $54.72
You Save: $6.84 (11 %)
In Stock: 1
Item Number: AL-40H
Manufacturer: AI NEXT, LLC
Manufacturer Part No: AL-40H
* Whole number only
|
Aleph AL-40H Wireless Passive Infrared Detector (PIR)
- Compatible: Honeywell Wireless and Lynx Touch L5200 Series
- QMA - Qualified Motion Analysis
- Rock Solid RFI immunity
- Dual slope Temperature Compensation
- 60 lb. Pet Immunity
- Optional 100 lb. Animal Immunity Lens
- Multi-function LED
- Ambient Temperature Detection,
- Self-dimming LED
- Tamper Switch
- Detection Area 40' x 40' (12m)
- Color:
- UPC: 6938942620403 (White) P/N: AL-40
Specifications
| Specifications | AL-40 |
|---|
| Type |
QMA - Qualified Motion Analysis |
| Input Voltage |
10.6 to 16VDC |
| Input Current |
15 mA maximum, 10 mA quiescent (approx.) |
| Pyro Type |
Dual element |
| Pulse Count |
2/4 pulses (selectable) |
| Warm Up Period |
50 secs. max. |
| Alarm Period |
2.4 secs, retriggerable |
| Visual Indicator |
Red Alarm LED (selectable on /off ) |
| Alarm Output |
NC dsolid state, 19 VDC, 100 mA, 13 ohms resistance typ. |
| Tamper Output |
NC, dry contact, 30 VDC, 500 mA, 5 W max. |
| Mounting Height |
6.5 to 8.5 ft. (2 to 2.6m) |
| OperatingTemperature |
+14° F to +131° F; Humidity: 95% max. |
| Dimensions |
3.9" (98mm) L; 2.5" (64mm) W; 1.7" (42mm) H |
| Weight |
3.0 oz. (83.5g) |
Other Part Numbers: AL-40H, AL40, AL-40, AL-AL40, AL-AL-40, ALP-AL40, ALP-AL-40
|
